RS/210 Series Balanced Valve Design

RS & 210 SERIES

Balanced Valve Design

R & RS Series

R & RS Series regulators have a double diaphragm balanced valve design that makes is possible to maintain steady outlet pressure control with widely varying inlet pressures. R & RS series regulators are intended for use with both main burner and pilot load appli­ca­tions. Applications include infrared heaters and pilot lines on large indus­trial heaters and boilers. They may also be used in residential appli­ca­tions as appliance regulators.



Certifications





Fuel Gases

Suitable for natural, manufac­tured, mixed gases, liquefied petroleum gases, LP gas-air mixtures, and gases of DIN EN 437 gas family 1, 2, and 3

Pipe Sizes

Model Pipe Sizes
R400(S)… ⅜”,  ½”,  Rp ⅜,  Rp ½
R500(S)… ½”,  ¾”,  Rp ½, Rp ¾
R600(S)… ¾”,  1″,  Rp ¾, Rp 1
R700… 1″, 1 ¼”, Rp 1, Rp 1 ¼



210 Series

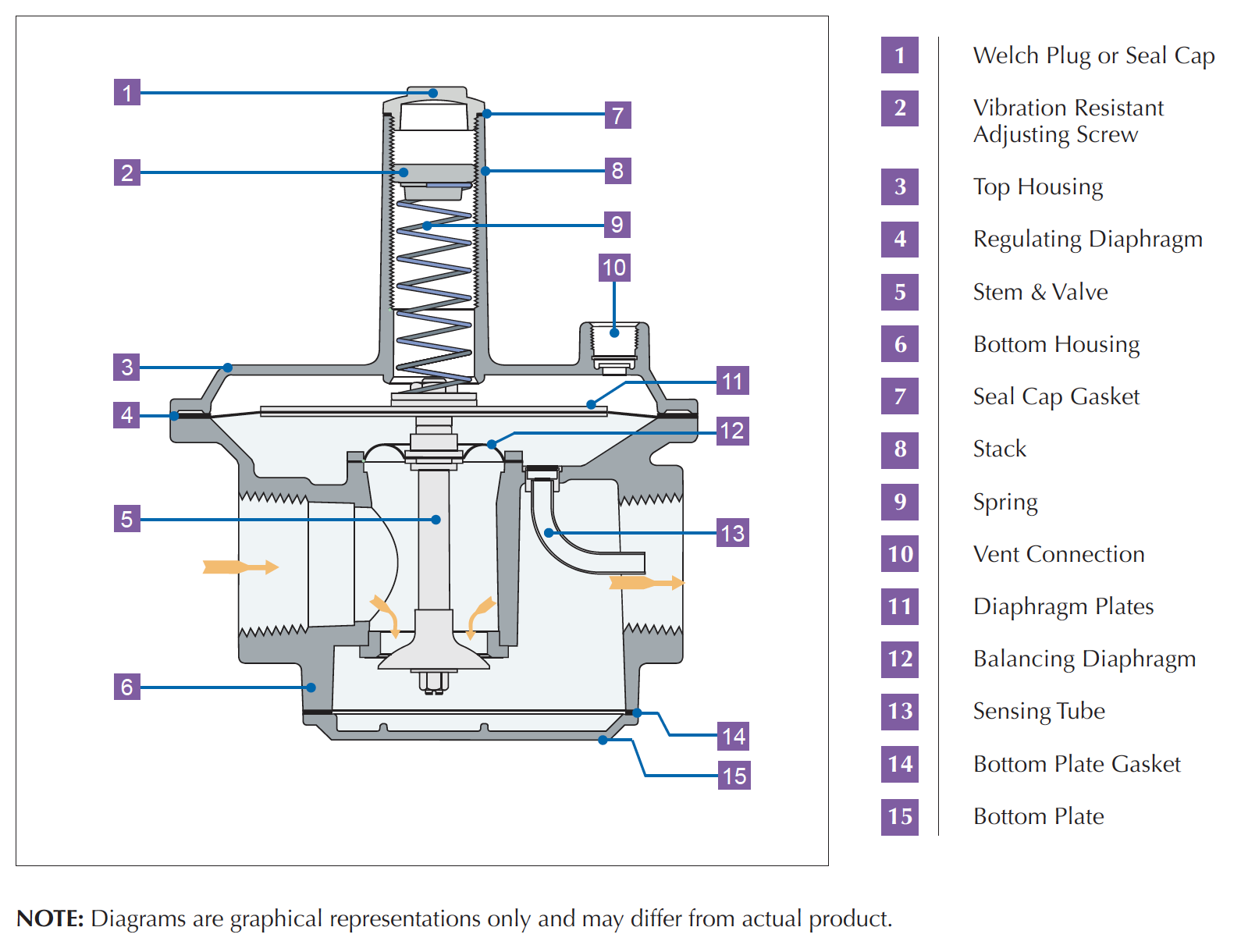

210 Series balanced valve design is a lockup-type regulator. The balanced valve design makes it possible to maintain steady outlet pressure control with widely varying inlet pressures. The 210 series provides precise regulation over a wide range of pressures and flow rates. Applications include gas-fired boilers, steam gener­ators, indus­trial furnaces and ovens. Remote sensing option is available on 210D, E, and G models.



Certifications





Fuel Gases

Suitable for natural, manufac­tured, mixed gases, liquefied petroleum gases, LP gas-air mixtures, and gases of DIN EN 437 gas family 1, 2, and 3

Pipe Sizes

Model Pipe Sizes
210D… 1″,  1 ¼”,  1 ½”,  Rp 1,  Rp 1 ¼,  Rp 1 ½
210E… 1 ½”,  2″,  Rp 1 ½,  Rp 2
210G… 2 ½”,  3″,  Rp 2 ½,  Rp 3
210J 4″,  DN100
