GV SERIES
Combination Gas Control Valves
GV Series Gas Control Systems
The GV Series Gas Control Systems are a comprehensive line of combination gas control systems used to control the pilot and main burner. In addition to standard features and options, these unique systems can be customized for use on a wide range of appliances such as space heaters, fireplaces, griddle plates, storage water heaters, or ovens. All versions of the GV valve have the same footprint, allowing an appliance to be upgraded without redesigning the vestibule. An appliance can be upgraded from a manual control system to a battery operated remote control system simply by adding accessories.
Certifications
GV Series Gas Control Systems
The GV Series Gas Control Systems are a comprehensive line of combination gas control systems used to control the pilot and main burner. In addition to standard features and options, these unique systems can be customized for use on a wide range of appliances such as space heaters, fireplaces, griddle plates, storage water heaters, or ovens. All versions of the GV valve have the same footprint, allowing an appliance to be upgraded without redesigning the vestibule. An appliance can be upgraded from a manual control system to a battery operated remote control system simply by adding accessories.
Certifications
Features
- Compact design
- Various inlet/outlet connections for more flexibility
- Thermoelectric flame supervision device
- Rate setting with fixed or adjustable orifices
- Integrated pressure regulator or throttle
- Convertible pressure regulator
- Pilot gas adjustment screw and pilot gas filter
- Screen in gas inlet area
GV60 Control System

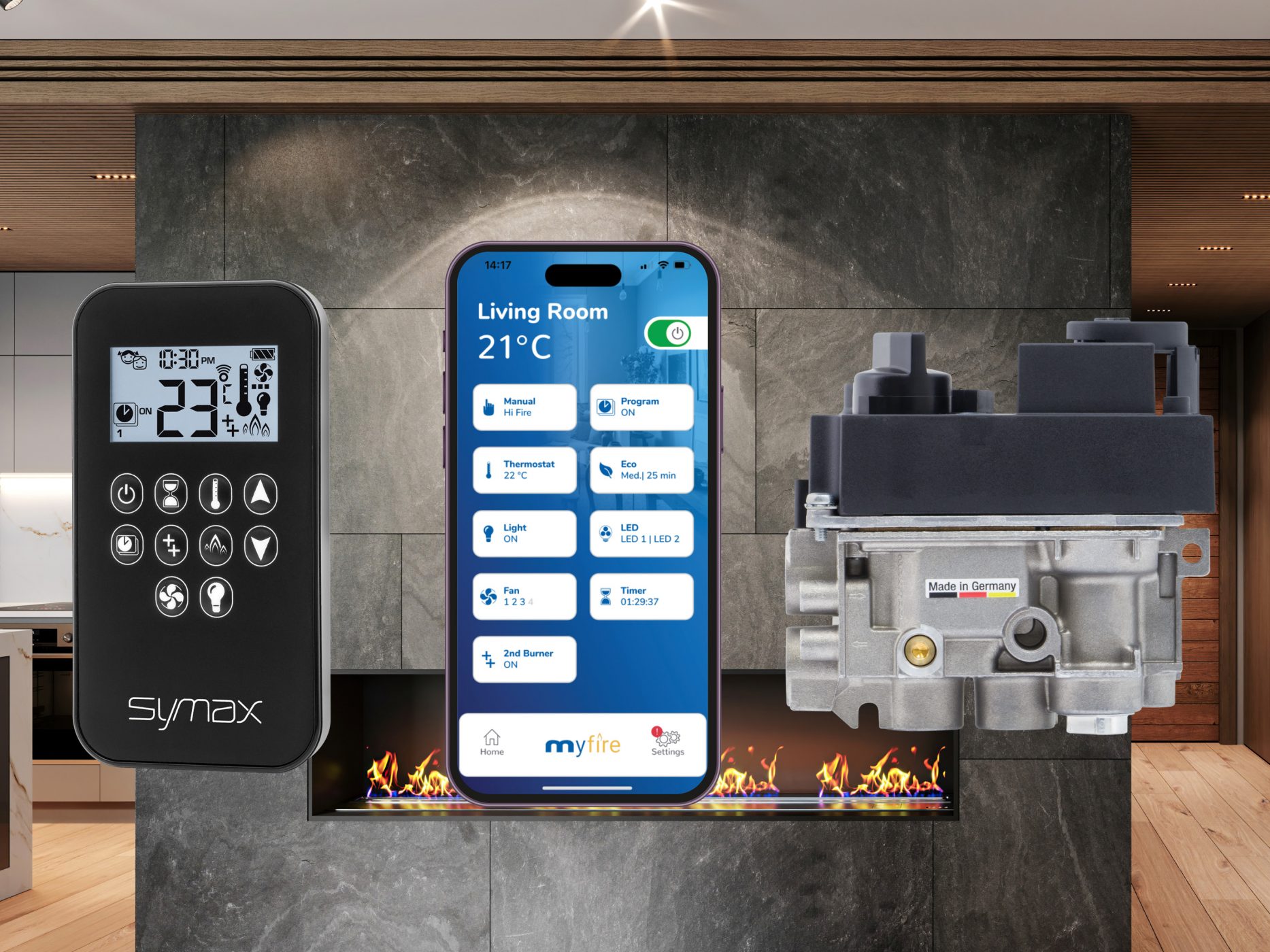

GV60 is a battery-powered electronic remote ignition and control system for gas appliances with pilot burners and ODS systems. When used with thermostatic remote, the GV60 fully modulates between low fire and high fire. Current applications include fireplaces and log sets. The green On-Demand Pilot feature eliminates energy consumption during extended appliance inactivity by automatically extinguishing the pilot. The GV60 System can be used with Maxitrol’s myfire Puck™, Symax® Handsets and myfire® App.
Features
- Programmable handset
- App-enabled
- Variable ambient light control and circulating fan control
- On-Demand pilot
- Second thermocouple connection
myfire App
The myfire app works in conjunction with the GV60 combination gas control system for gas fires. The app’s interactive, colorful graphics make operating a smart phone or tablet simple and fun while giving absolute control of your gas fire. More information on www.myfireapp.com.
GV34 Control System
The GV34 is a servo motor operated valve with remote control allowing for infinite adjustment from low fire to high fire. When used with thermostatic handset, the GV34 fully modulates from low fire to high fire. Manual operation by hand or remote control without electronics is possible.
Features
- Operation: Battery operated handset (Temperature sensing handset with timer function Manual override)
- Integrated piezo ignitor (optional)
- Integrated pressure regulator (optional) or throttle (optional, CE only)
- Customized to OEM specifications
GV30/30A/31 Control Systems
GV30/GV30A/GV31 Series combination gas control systems precisely and efficiently control the pilot and the main burner of gas appliances.
These systems can be customized to OEM specifications and suit a wide range of commercial cooking appliances, including ovens, griddle plates, fryers, bain-maries, and coffee roasters.
Features
- Separate temperature knob
- Easy operation
- Liquid filled stainless steel temperature sensor
- Optional readjustment with recalibration knob
- Outlet for 2nd burner
| Title | Description | Version | Download |
|---|---|---|---|
| GV30 Series Combination Gas Control Valves | GV30 Series Combination Gas Control Valves | 🇬🇧 GV30-SS-EN-03.2024 | DownloadPreview |
| GV60 Bidirectional Control System | Operating Instructions; GV60 Bidirectional Control System for use with myfire Puck™, Symax® Handsets and myfire® App | 🇬🇧 GV60-OI-EN-03.2023 | DownloadPreview |
| GV60 Electronic Ignition & Control System | Operating Instructions; For use with G6R handsets. GV60 electronic remote ignition & control system is battery-powered for gas appliances with standard pilot burner & ODS systems. | 🇬🇧 GV60-B-OI-EN-03.2023 | DownloadPreview |
| GV60 Power Consumption Guide | Datasheet; Power consumption of the GV60 bidirectional electronic remote ignition & control system | 🇬🇧 GV60-DS-EN_07.2019_PCG | DownloadPreview |
| GV30/GV30A Combination Control Systems | Catalog; Gas combination control systems for wide range of commercial cooking appliances:ovens, griddle plates, fryers, and bain-maries. | 🇬🇧 GV30.GV30A-LC-EN-10.2021_Cooking | DownloadPreview |
| GV30 Pressure Switch | Literature; GV30-Switch closes an electrical contact when the gas reaches a set pressure. Typical applications: main gas LED; pilot gas LED; oil pump. | 🇬🇧 GV30-LC-EN-09.2019-Switch | DownloadPreview |
| GV30 Cut-a-way | Poster; GV30 cut-a-way; main valve function. | 🇬🇧 GV30-LP-EN-01.2016 | DownloadPreview |
