Kits y muelles
Tornillos de ajuste
| Modelo | Se utiliza en … |
|---|---|
| R1211 | RV12, R400 |
| R2011 | RV20 |
| R4811 | RV47, RV48, RV52, R500 |
| R5211 | RV52, R500 |
| R325C11 | RV53, 325-3, R600 |
| R325E11 | 325–5A, RV61, R700 |
| R8111 | RV81, 210D, 325-7 |
| R9111 | RV91, 210E, 325-9 |
| R11111 | RV111, 210G, 325-11 |
| R12111 | 210J |

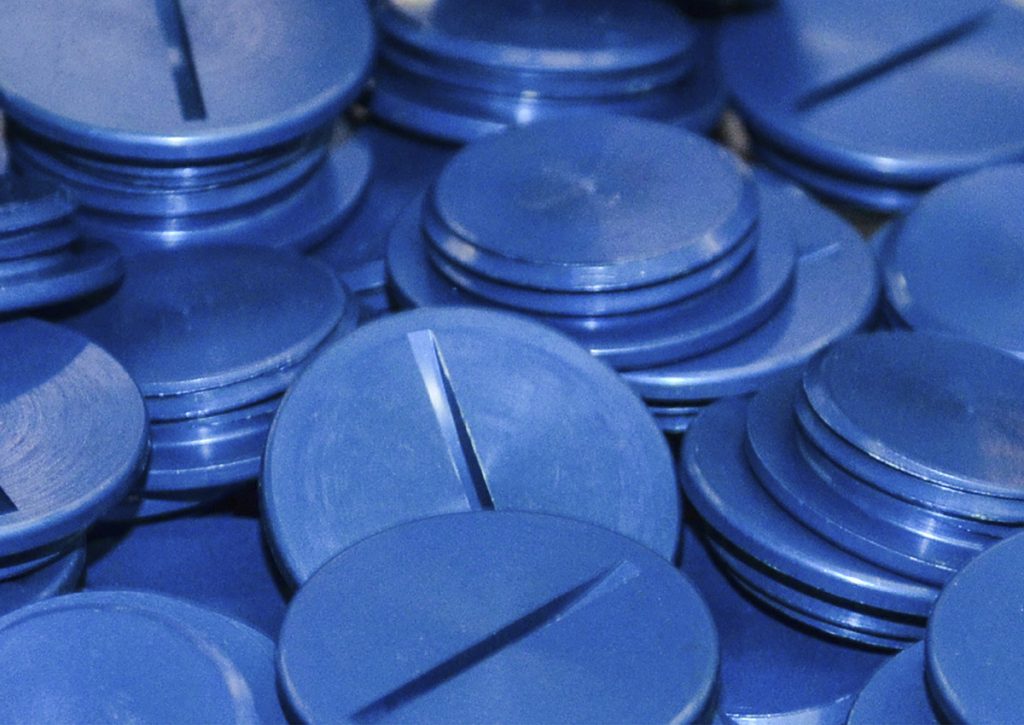

Tapa de cierre con junta
Especificaciones: Consta de un regulador con conjunto de tapa superior y juntas.
| Modelo | Se utiliza en … |
|---|---|
| KR1212 | RV12, R400 |
| KR2012 | RV20 |
| KR4812 | RV47, RV48, RV52, R500 |
| KR325C12 | RV53, 325-3, R600 |
| KR325E12 | 325-5A |
| KR6112 | RV61, R700 |
| KR8112 | RV81, 210D, 325-7 |
| KR9112 | RV91, 210E, 325-9 |
| KR11112 | RV111, 210G, 325-11 |
| KR13112 | 210J |

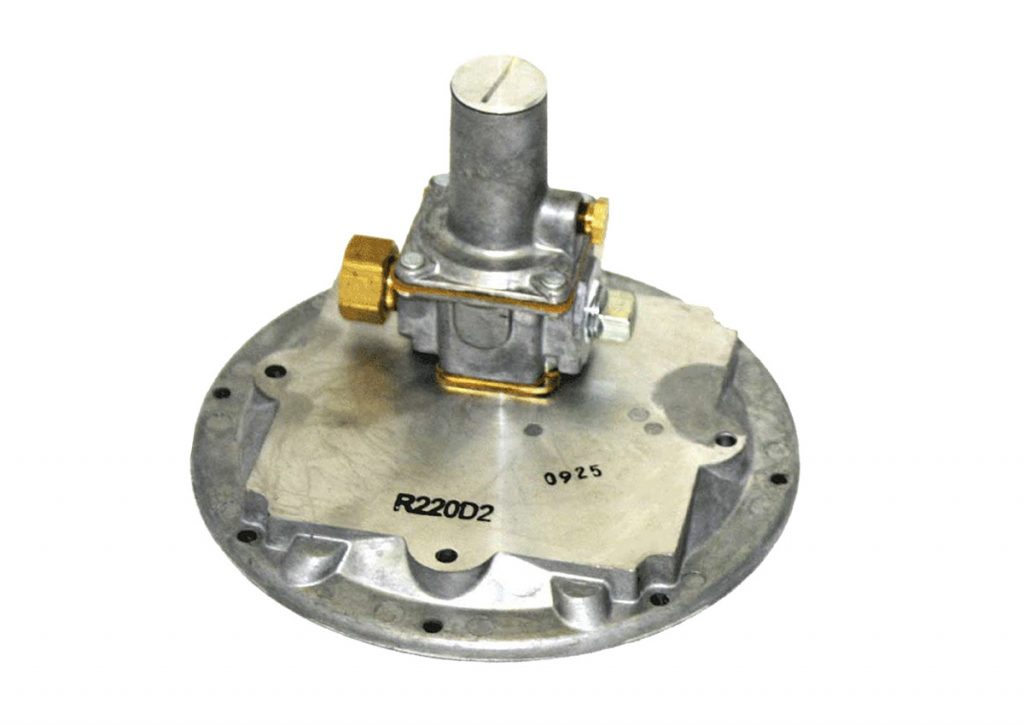

Kits y piezas varias
Descripción: Cabezal de control de 3 vías, junta y elementos de fijación con el conjunto de la tapa superior
| Modelo | Se utiliza en … |
|---|---|
| KT/10447D | MR212D |
| KT/10447E | MR212E |
| KT/10447G | MR212G |
Descripción: Tubo de derivación
| Modelo | Se utiliza en … |
|---|---|
| KT/10453 | MR212D |
| KT/10454 | MR212E |
| KT/10460 | MR212G |
Descripción: Conjunto de soporte para soplador de 2 velocidades
| Modelo | Se utiliza en … |
|---|---|
| KT/10542 | MR212D, E, G, J |
Descripción: Cabezal modulador, junta, émbolo y tornillería
| Modelo | Se utiliza en … |
|---|---|
| KT/M420B2 | MR212, D, E, G |

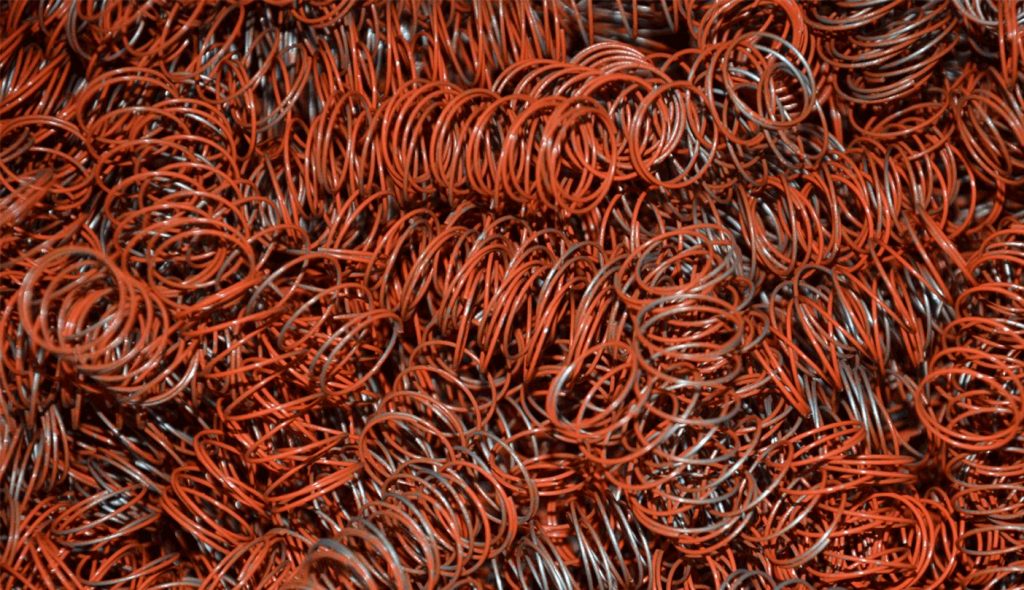

Muelles
| Nº de sufijo Código de color | -36 PLT | -13 BRW | -25 PLT | -35 PLT | -38 PNK | -48 ORG | -412 VIO |
|---|---|---|---|---|---|---|---|
| R1210T | – | X | – | X | – | X | – |
| R2010T | – | X | – | X | – | X | – |
| R4710 | – | X | – | X | – | X | – |
| R4810 | X | X | – | – | – | X | – |
| R5210 | X | X | X | – | X | X | X |
| R5310 | X | X | X | – | X | X | X |
| R6110 | X | X | X | – | X | X | – |
| R8110 | X | X | X | – | X | X | X |
| R9110 | X | X | X | – | X | X | X |
| R11110 | X | X | X | – | X | X | X |
| R13110 | X | X | X | – | X | – | X |
| R400B10 | X | X | X | – | X | – | X |
| Nº de sufijo Código de color | -512 BLU | -515 GRN | -812 BLU | -610 ROJO | -1022 ROJO | -1530 YEL | -2042 BLK |
|---|---|---|---|---|---|---|---|
| R1210T | – | – | X | X | – | – | – |
| R2010T | – | – | X | X | – | – | – |
| R4710 | – | – | X | X | – | – | – |
| R4810 | X | – | – | X | – | – | – |
| R5210 | X | – | – | – | X | – | – |
| R5310 | X | – | – | – | X | X | – |
| R6110 | X | – | – | – | X | – | – |
| R8110 | X | X | – | – | X | X | X |
| R9110 | X | X | – | – | X | X | X |
| R11110 | X | X | – | – | X | X | X |
| R13110 | X | – | – | – | X | X | X |
| R400B10 | X | – | – | – | X | – | – |
| Nº de sufijo Código de color | -26 PLT | -59 PLT | -412 VIO | -711 WHT | -1022 ROJO | -1530 YEL | -P12 BLK |
|---|---|---|---|---|---|---|---|
| R325C10 | X | X | X | X | X | X | X |
| R325E10 | X | X | X | X | X | X | X |
NOTA:
- Los reguladores 210D utilizan los muelles R8110
- Los reguladores 210E utilizan los muelles R9110
- Los reguladores 210G utilizan los muelles R1110
- Los reguladores 210J utilizan los muelles R13110
